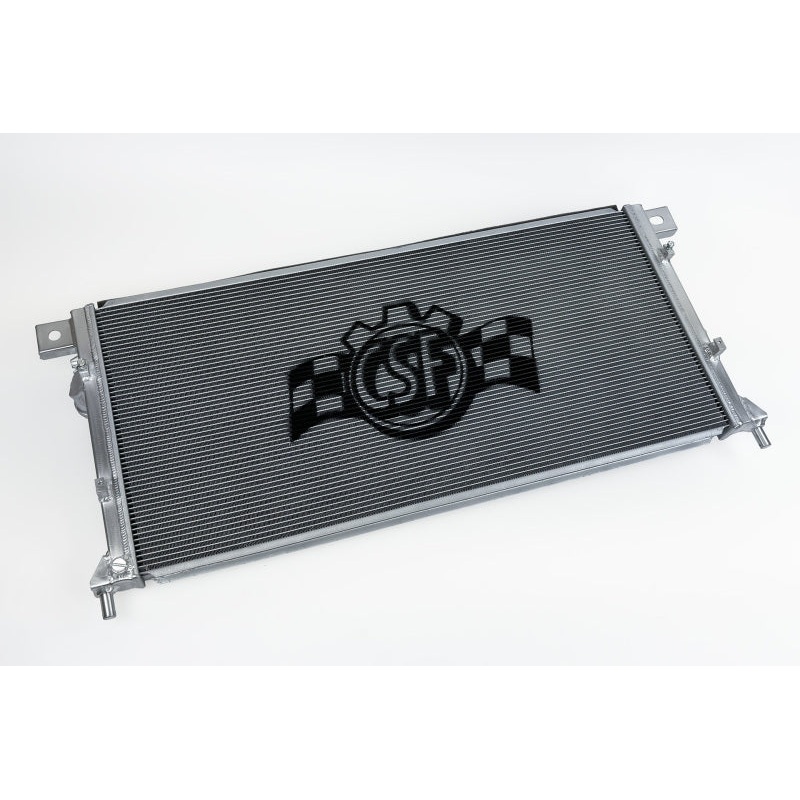

CSF High-Performance Radiator For GR Corolla & GR Yaris

Toyota GR Corolla & GR Yaris High-Performance Radiator Features

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes withCSFs Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Pre-plugged 1/8th NPT temperature sensor port on right side tank
• Pre-installed foam strips on top and bottom end plates for increased sealing
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play Drop-in Fit Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested

• Applications:
  • 2023+ Toyota GR Corolla
  • 2020+ Toyota GR Yaris

• OEM Part Numbers:
  • Toyota: 16400-18060 (GR Corolla)
  • Toyota: 16400-18050 (GR Yaris)
